    BAS 1322
    Lichtenstein bridge / Rosa - Luxembourg - Steg
    Brückenbild

    © Frank Sellke / brueckenweb.de

    gegen Entgeld / for a feeUse in accordance with the terms and conditions

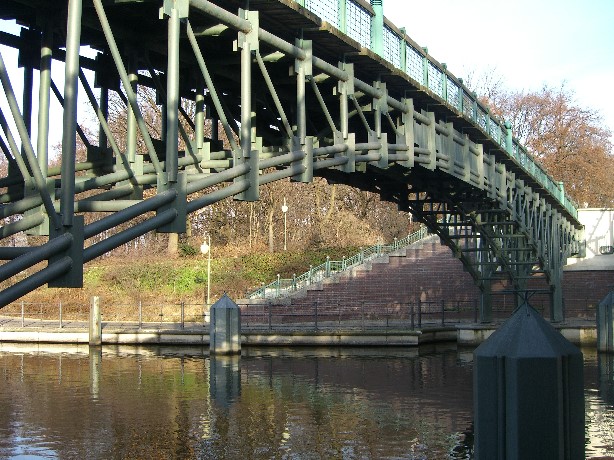

    Bild 1

    05.06.2009

    © Michael Lensing

    Nachfrage / demandUse only on request

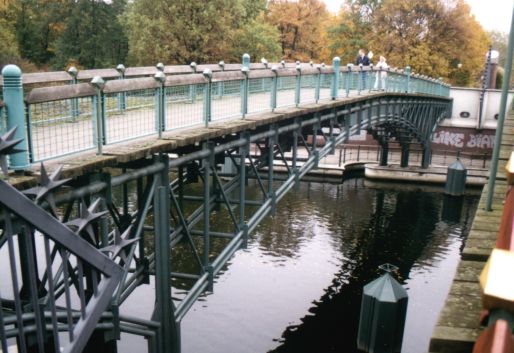

    Bild 2

    © Frank Sellke / brueckenweb.de

    gegen Entgeld / for a feeUse in accordance with the terms and conditions
    To Bridge Images
    Germany
    Berlin
    Berlin Center
    OT Zoo, Zoo - Zoological Garden
    Landwehr Canal
    Pedestrian/bike path
    Truss bridge
    Steel
    1987
    0.00 m
    0.00 m
    0.00 m

    A map is loading

    Timeline

    Loading timeline...

    Tags

    Loading tags ...

    Editing is available for members (midgr >= 6).

    News

    Lade Nachrichten ... loading news ...

    Links

    Loading links ...

    Literature

    Loading literature ...

    Collectibles

    Loading collectibles ...

    Videos

    Loading videos ...

    Documents

    Loading documents ...

    0.00 m
    0.00 m
    0.00 m2
    in operation
    <br>Architects pupils / students Witte<br><br>These two closely adjacent pedestrian bridge, built in extension of the Lichtenstein Avenue to connect the Zoo with its extension grounds North of the Landwehr Canal. One of the two bridges combines the two remaining outside of the Zoo shoreline with walkers because of the Tiergarten.

 The bridges spanning the channel as skew, arched truss constructions made of steel tubes. Their main supports rest on the banks on each continuous reinforced concrete beams, which are founded on steel stilts.

 Static system and construction features:
 Pipe continuous truss over three fields with tie rods (pendulum rods on the abutments). Two buildings with three or five equally trained dreifeldrigen main trusses, which are connected by pipes in lower and upper belt level. Diagonal associations sheet at the supports and in the peloton, stiff from the construction in the transverse direction. The tread surface consists of 12 cm thick pine wood plank. Superstructure of the bridge the public bridge was named Rosa Luxembourg provided and to the Zoo, superstructure of the bridge retains its old name Hinrich Lichtenstein 1 Director of the Berlin Zoo. see newspaper's cut from the Berliner Zeitung of the 25.9.2012 under the pictures.
