BAS 179
Mangosteen case bridge
02.07.2003
© Frank Sellke / brueckenweb.de
Use in accordance with the terms and conditions
02.07.2003
© Frank Sellke / brueckenweb.de
Use in accordance with the terms and conditions
02.07.2003
© Frank Sellke / brueckenweb.de
Use in accordance with the terms and conditionsGermany
Bavaria
Mühldorf, Weyarn
about 50 km south of Munich
Mangfall
Highway A8 Munich-Salzburg
Truss bridge
Prestressed concrete
1955
108.00 m
310.00 m
23.50 m
63.00 m
0.00 m
0.00 m2
in operation

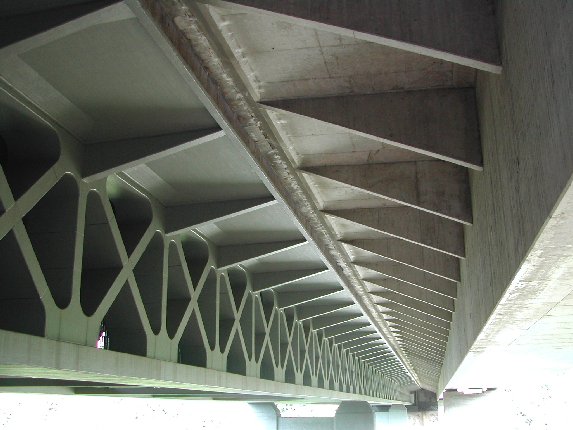

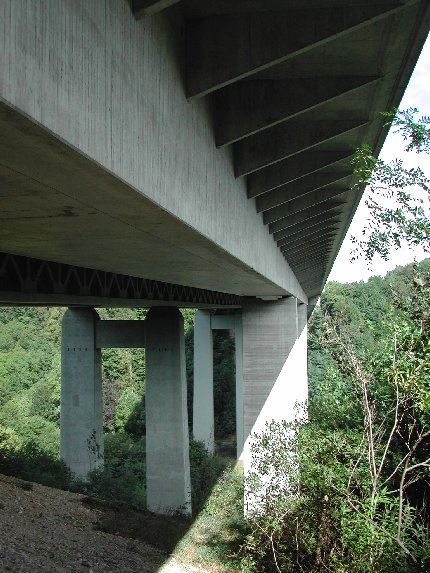

The free cantilever building built over consists of two 6.60 m high prestressed concrete trusses with a longitudinal and transverse sheet deck 23.5 m wide. A pedestrian and cycle path after kind of a double-deck bridge is located on the lower deck of the construction. The bridge spans the Mangfall Valley at an altitude of about 63 m spans from 90 + 108 + 90 = 288 m. The total cost was approximately 7.3 million DM including the construction of bicycle and sidewalk connections. A simple box girder tie-concrete beams for the extension of the motorway has been built next to the truss structure.
