    BAS 1880
    Øresundbron = Öresund bridge

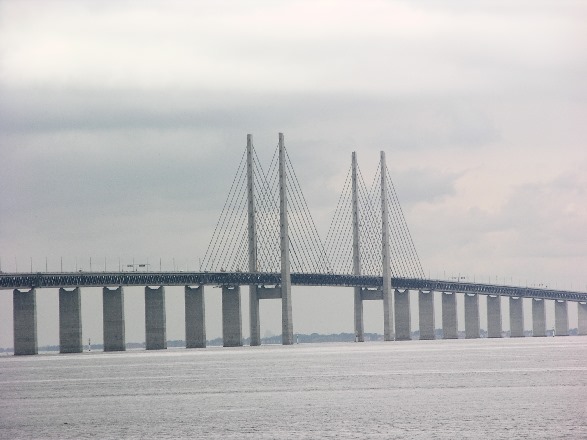

    Brückenbild

    August 2003

    © Søren Madsen / Øresundsbron
    verboten / prohibitedNo other use permitted

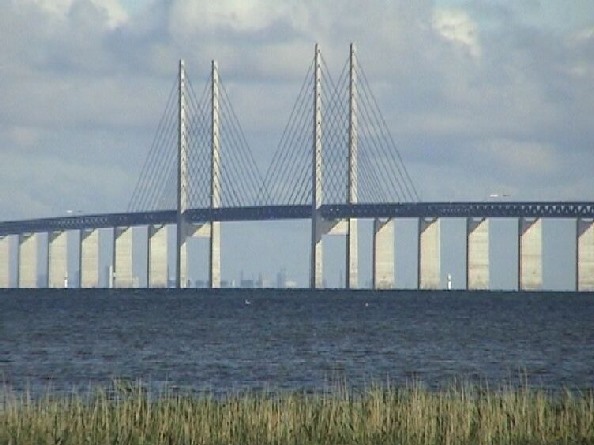

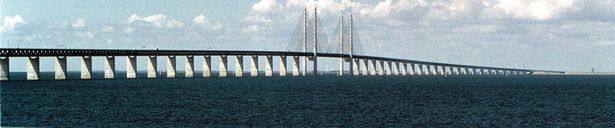

    Bild 1

    © Robert Cortright / Bridge Ink

    Use of Robert Cortright

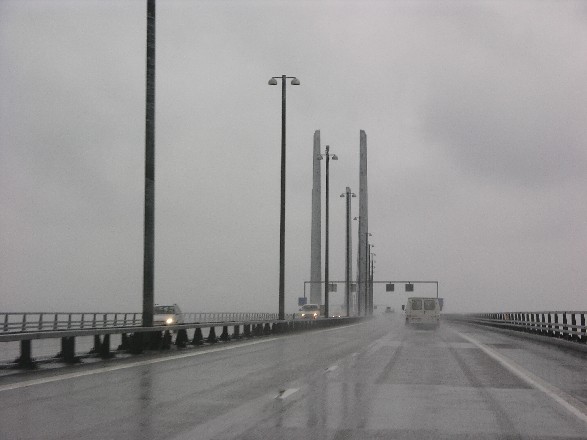

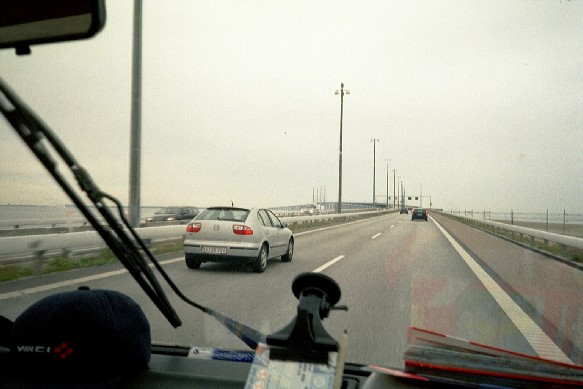

    Bild 2

    Juni/Juli 2004

    © Claudia Stetter

    Nachfrage / demandUse only on request
    To Bridge Images
    Denmark / Sweden
    Skåne län
    København / Malmö
    Øresund
    Highway/railway
    Cable-stayed bridge
    Steel
    1993 bis 2000
    490.00 m
    7845.00 m
    30.00 m
    Karte wird geladen …

    Timeline

    Loading timeline...

    Tags

    Loading tags ...

    Editing is available for members (midgr >= 6).

    News

    Lade Nachrichten ... loading news ...

    Links

    Loading links ...

    Literature

    Loading literature ...

    Collectibles

    Loading collectibles ...

    Videos

    Loading videos ...

    Documents

    Loading documents ...

    Participants

    Loading participants ...

    0.00 m
    0.00 m
    0.00 m2
    in operation

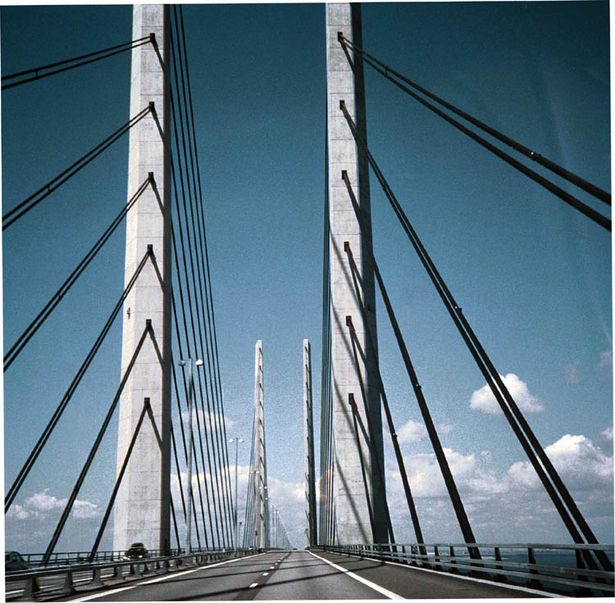

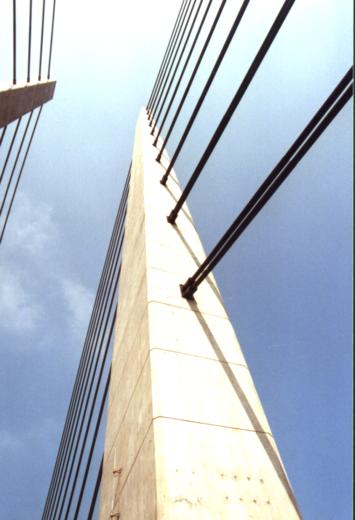

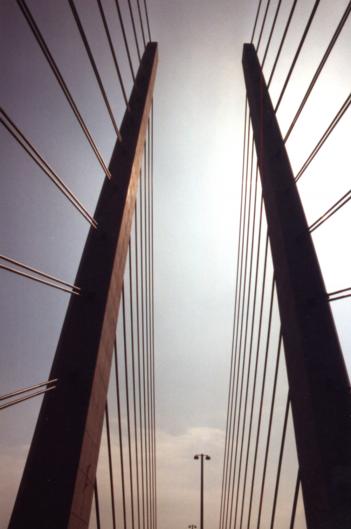

    Two-storey: in the truss below the railway, above the highway<><br>Info from Wikipedia: the total length of the bridge turn 7845 m. The entrance to the Middle High Bridge via two ramp bridges. The Western ramp bridge with a total length of 3014 metres consists of 22 fields of bridges, of which 18 have a span of 140 meters. The 3739 metres long Eastern ramp bridge has 28 openings, of which 24 have a span of 140 meters each and four of 120 meters each. In between lies the 1092-metre high bridge, the actual Öresund bridge, with a span width of the field of 490 meters. The pylons consist of reinforced concrete, is 206 meters high and have the dimensions below 9.4 × 12.6 meters and up 2.6 × 5.8 metres. The two-storey superstructure has an altitude of 11 metres and a width of 30 meters. He is from overhead steel concrete ceiling in conjunction with the underlying steel truss beams. The four-lane highway is arranged on the upper deck, the trusses are the two railway tracks. It is not possible to use for bicycle travelers. The high bridge has a clear passage height of 57 meters at normal water level. The one billion euros [1] expensive bridge was built 40 months, what was about 90% with large precast. These were the building blocks, the piers and the bridge girders, which were manufactured and assembled with the floating crane Svanen, which has a lifting capacity of 8,700 tons and a height of 74 meters, on land. Only the two 20,000 tons of heavy precast pylon foundations of high bridge, concreted in a dry dock, were transported by load catamaran to the bridge construction site.
