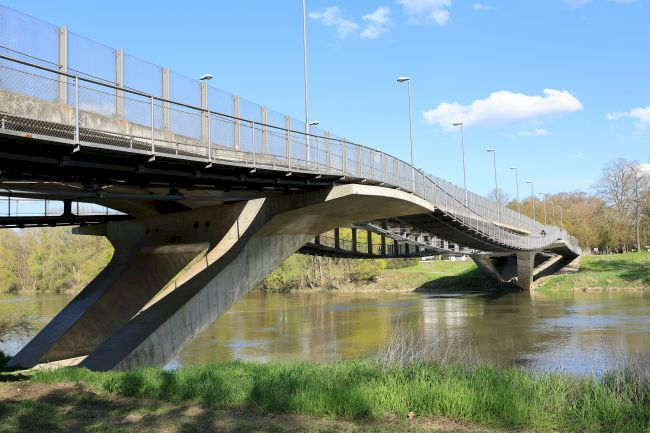

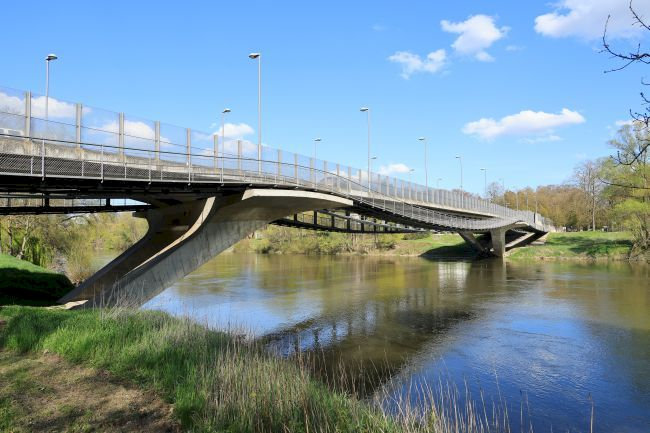

WIKIPEDIA: The glacis bridge is a road bridge in Ingolstadt and was built from 1996 to 1998, she is the youngest of the four, for road traffic shared bridges across the Danube at Ingolstadt. It is part of the Ingolstadt ring road system and the westernmost Street Bridge in the city. The glacis bridge passes by around 50,000 vehicles daily. The bridge was named after the glacis the former fortress belt and today's Park, which surrounds the city's old town. While the Ingolstadt citizens in the naming of the bridge were included and could choose from three name proposals.
It has a total length of 164 meters, where their driveway South of the Danube by Luitpoldpark leads and informs them. The 12-metre-wide deck has a 70 centimeters high, two-bar plates cross-section beams, which spans about 42 feet or 46 meters and in the middle of 76 meters page fields and is supported by a rope under tension. The undervoltage consists of four ropes with a diameter of 118 mm. If the design type manufactured the glacis bridge to a steel concrete strut frame with rope under tension. The walks and Cycleways transferred seiltlich below the roadway with clamping band bridges, whose Gradiente corresponds to the history of undervoltage of the deck as a mountain - and Valley drive.
