    BAS 3664
    ILM bridge
    Brückenbild

    © Thorsten Grödel

    Nachfrage / demandUse only on request
    Bild 1

    © Heidi Zengerling

    Use of Heidi Zengerling
    Bild 2

    © Heidi Zengerling

    Use of Heidi Zengerling
    To Bridge Images
    Germany
    Thuringia, Germany
    Mellingen, Weimar
    ILM
    Motorway A4
    Arch, Arch under the roadway extension as a girder bridge
    Stone (extension of prestressed concrete)
    1939, Erweiterung 1999
    0.00 m
    298.60 m
    0.00 m

    A map is loading

    Timeline

    Loading timeline...

    Tags

    Loading tags ...

    Editing is available for members (midgr >= 6).

    News

    Lade Nachrichten ... loading news ...

    Links

    Loading links ...

    Literature

    Loading literature ...

    Collectibles

    Loading collectibles ...

    Videos

    Loading videos ...

    Documents

    Loading documents ...

    0.00 m
    0.00 m
    5374.80 m2
    in operation

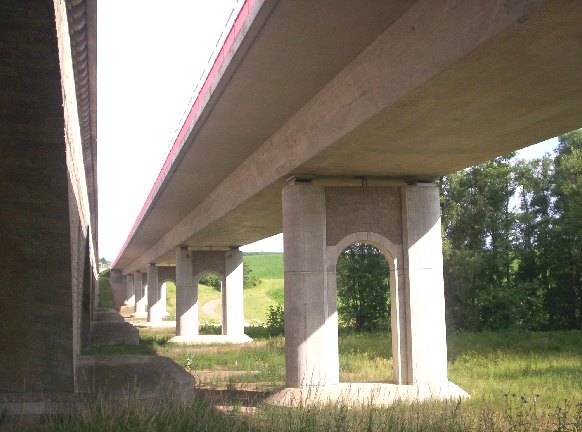

    the Ilmtalbrücke is actually two bridges, the old bridge is the direction roadway Hermsdorf intersection > Eisenach (arch bridge) and the new bridge the direction roadway Eisenach > Hermsdorf intersection (bridge)<br><br>Information by Heidi Zahir:<br>Structure data of the new Ilmbrücke:<br> <br>Type: prestressed concrete<br>Bridge class 60/30<br>Total length between the end supports: 298,60 m<br>Clearance between the abutments: 297,10 m<br>Width between the railings: 18.00 m<br>Bridges area: 5.374,80 m²<br>Lanes per direction road: 3<br>Booth traces per direction road: 1<br>
 <br>The construction work began in March 1995. The bridge structure was built without disturbing the traffic. Construction period: 18 months<br>Construction cost: 11.0 million DM<br>
 <br>
 <b>the existing structure:</b><br>

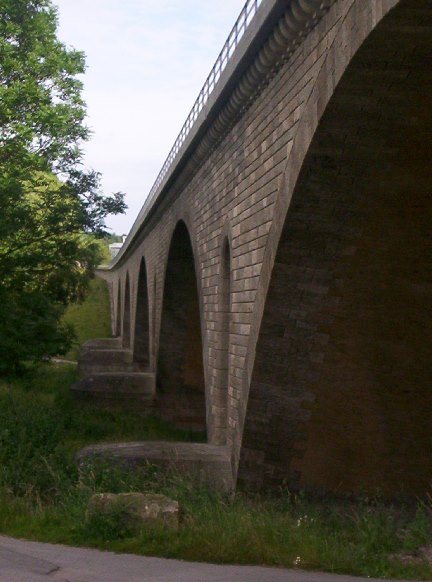

 <br>Distance light floor plan 15° skew arch bridge with five openings of approximately 42 m. The span of the arch is about 43,40 m the building was built in 1938 and 1939. The main structure consists of an arch with high-strength clinker brick, whose Dicke is 1.70 m to the fighters and 1.04 m at the top. The road is situated in the zone Apex directly on the sheet in the fighter - and pillar range on steel concrete slabs, which are also mounted on supports made of unreinforced concrete arranged at intervals between 5.00 and 5.50 m.<br>
 <br>Total width: 23,40 m<br>Bridge length between the outermost parts of abutments: 385,00 m.<br>The front side, the abutment and Pier paragraphs are blinded with natural stones, travertine and limestone.<br>
