    BAS 3685
    Rhone bridge FO
    Die Brücke in angehobenem Zustand

    Die Brücke in angehobenem Zustand

    2000

    © Wolfgang Linder

    Nachfrage / demandUse only on request
    Bild 1

    © Markus Widmer (http://www.mawi-foto.ch)

    Nachfrage / demandUse only on request
    Bild 2

    23.06.2011

    © Frank Sellke / brueckenweb.de

    gegen Entgeld / for a feeUse in accordance with the terms and conditions
    To Bridge Images
    Switzerland
    Valais
    Brig, Naters
    Rhône
    Railway (Furka upper ALB railway FO)
    Truss bridge, drawbridge, vertical lift bridge
    Steel
    1911-1912
    0.00 m
    0.00 m
    0.00 m

    A map is loading

    Timeline

    Loading timeline...

    Tags

    Loading tags ...

    Editing is available for members (midgr >= 6).

    News

    Lade Nachrichten ... loading news ...

    Links

    Loading links ...

    Literature

    Loading literature ...

    Collectibles

    Loading collectibles ...

    Videos

    Loading videos ...

    Documents

    Loading documents ...

    0.00 m
    0.00 m
    0.00 m2
    in operation

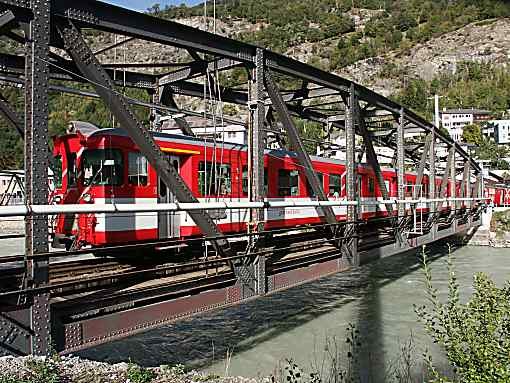

    Information provided by Wolfgang Linder:<br>The bridge was built in 1911/12 from "Mild steel". It is a riveted construction. The bridge is in a very good condition.<br><br>Information provided by Markus Widmer(23.10.2006):<br>The bridge can be lifted hydraulically, floods of the Rhône, debris and trees freely to give passage.<br>This bridge is canceled after the opening of the NEAT (Lötschberg) in December 2007.
 The lines will lead the FO new along the left bank of the Rhône.

 The einfeldrige bridge has a span of 51.2 m. She served the private narrow gauge railway (the Matterhorn-Gotthard-Bahn, MGBahn - former Furka-Oberalp-Bahn, FO) crossing the Rhône river. The bridge is 4.8 m wide and weighs 270 tons.<br>in 1996, the bridge under my leadership to a lift bridge was converted to give more freeboard of the Rhone. The lifting device was designed by Proceq. It consists of 4 lifting cylinders with a Hubhähe of each 1.35 m.<br>During the floods in the year 2000 she was raised. The pictures show the bridge in the raised State.
