BAS 3749

Heidilandbruecke

Brückenbild

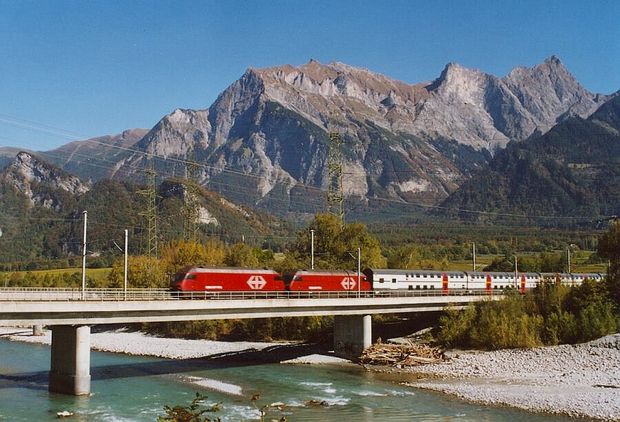

© Markus Widmer (http://www.mawi-foto.ch)

Use only on request

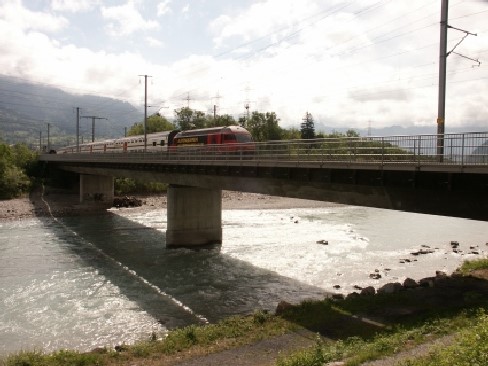

© Christian Barmettler ( http://www.chriguseisenbahnseiten.ch )

Use only on request

© Markus Widmer (http://www.mawi-foto.ch)

Use only on request

To Bridge Images

country

Switzerland

region

Graubünden, St. Gallen

city

Bad Ragaz

location

under the bridge

Rhine

bridge carries

Railway

bridge type

Girder bridge

material

Prestressed concrete

construction year

1856-1857 (Holz), 1927 (Stahl), 1994 (Spannbeton)

span (m)

24.00 m

total length (m)

140.00 m

width (m)

0.00 m

A map is loading

Timeline

Loading timeline...

Tags

Loading tags ...

Editing is available for members (midgr >= 6).

News

Lade Nachrichten ... loading news ...

Links

Loading links ...

Literature

Loading literature ...

Collectibles

Loading collectibles ...

Videos

Loading videos ...

Documents

Loading documents ...

deck height (m)

0.00 m

pier height (m)

0.00 m

bridge area

0.00 m²

status

in operation

details

<b>first generation:</b> 1856 to 1857 covered wooden bridge on driven wooden pillars, lattice principle Howe, later the wooden pillars were protected by cast iron tubes. 1899/1900 were built between the tube pillars of stone pillar then, <b>second generation:</b> in 1927, the wooden bridge was demolished and replaced by a fully-walled steel trough, for this the old piers were used. These had to be renovated 11976, <b>third generation:</b> new pillar with bored piles were built for the new pre-stressed concrete bridge from 1994
