BAS 3776
Quart bridge monastery
© August Brassel
Use in accordance with the terms and conditions
02.07.2011
© Frank Sellke / brueckenweb.de
Use in accordance with the terms and conditions
02.07.2011
© Frank Sellke / brueckenweb.de
Use in accordance with the terms and conditionsSwitzerland
Graubünden
Monastery
Landquart
Railway (RhB course Klosters - Cavadürli km 32,760)
Truss bridge, girder bridge
Prestressed concrete
1991 (1993(RhB))
76.50 m
89.00 m
0.00 m
0.00 m
0.00 m
0.00 m2
in operation

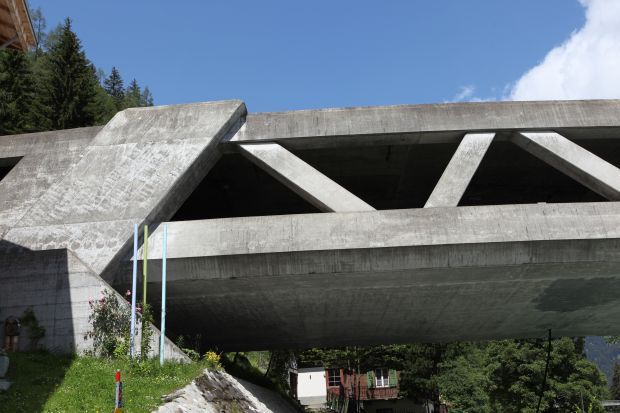

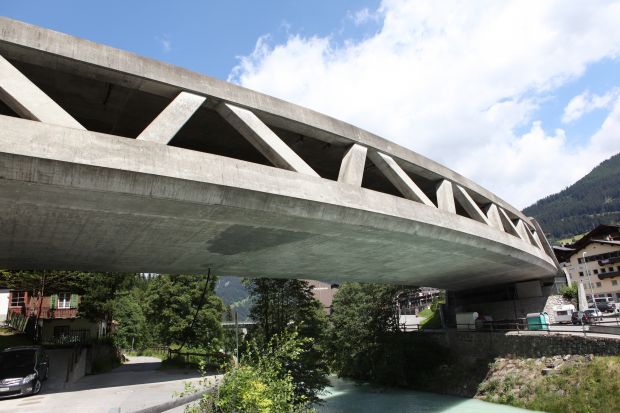

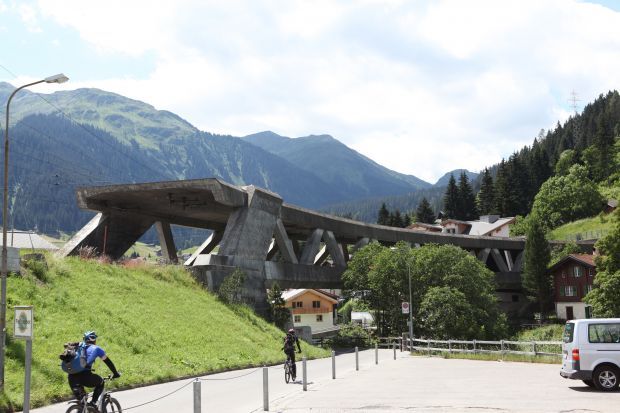

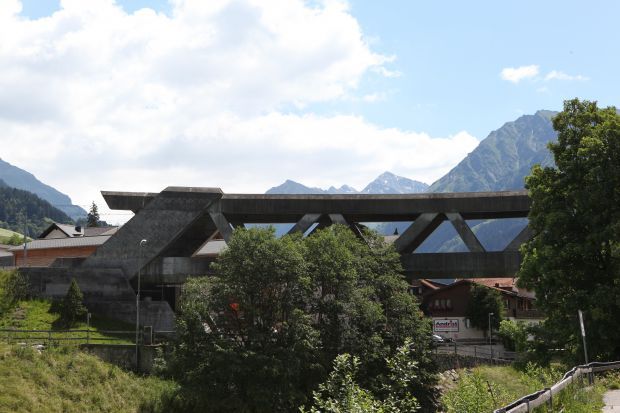

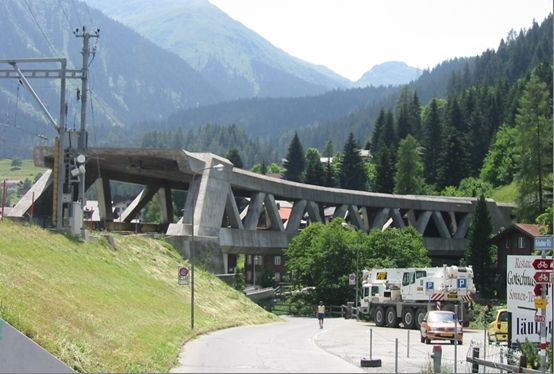

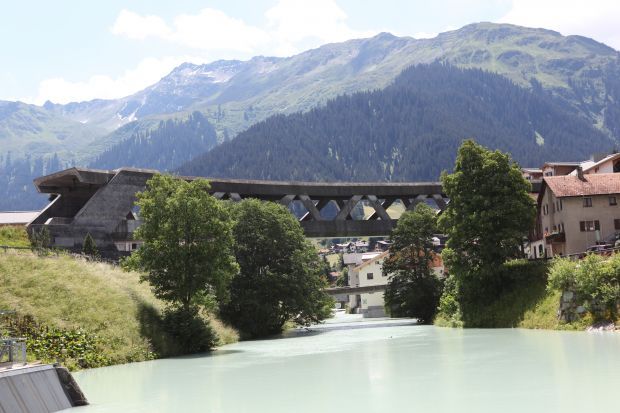

Tensioning concrete truss bridge! Due to the construction of the Vereina tunnel a new bridge was needed here, BAS 844 replacing the bridge.<br><br>Load standard: SIA standard 160 (1989)
Rhätische Bahn (RhB)
10-048
