BAS 3800
Grand Viaduc de Millau
© Robert Cortright / Bridge Ink
Use of Robert Cortright
© Frank Sellke / brueckenweb.de
Use in accordance with the terms and conditions
© Frank Sellke / brueckenweb.de
Use in accordance with the terms and conditionsFrance
Midi Pyrénées: Aveyron (12)
Millau Grands Causses
Le Tarn
A75 motorway (Clermont Ferrand / Beziers)
Cable-stayed bridge
Steel
2002-2004
342.00 m
2460.00 m
37.00 m
270.00 m
343.00 m
0.00 m2
in operation

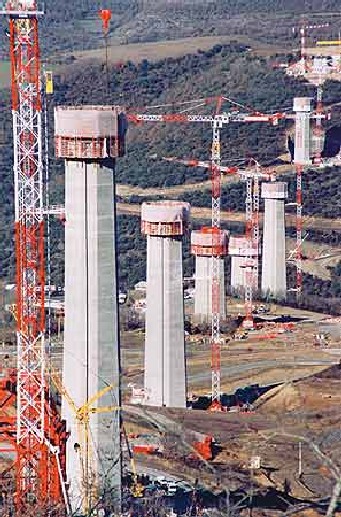

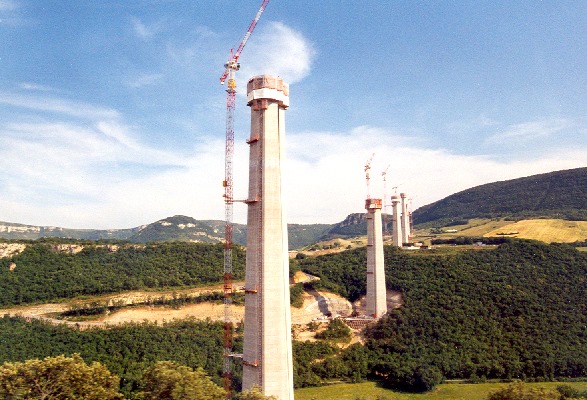

Schrägseilfelder: 204 m+342+342+342+342+342+342+204m,<br>Height of roadway above ground: up to 270 m, the concrete pillars have a height of 76 m to 245 m,<br>Maximum pylon height above ground: 343 m,.<br>Height of the superstructure: 4.20 m<br>Concrete volume: 85000 m³ plus 50000 M3 high-strength concrete (B60)<br><b>Europe's largest/highest motorway bridge</b><br>Opening by President Chirac on 14.12.2004
