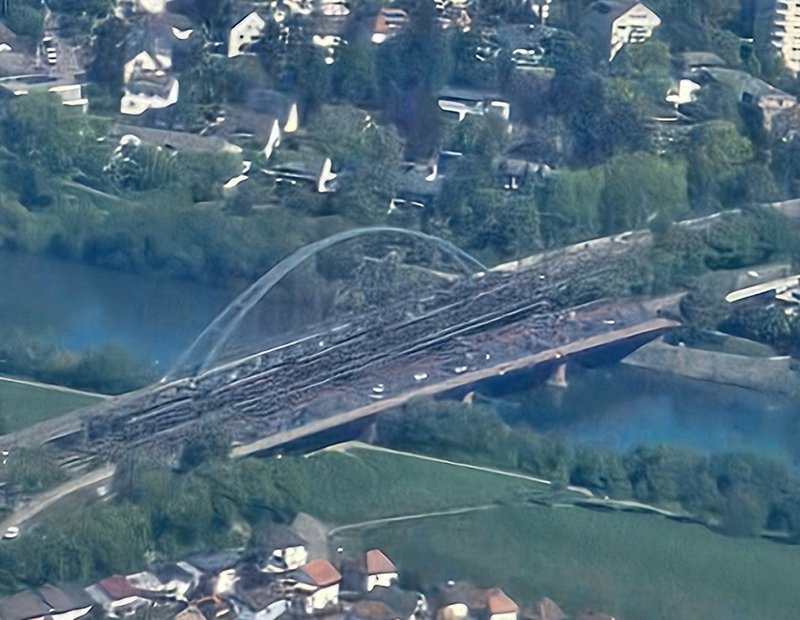

The single-track bridge consists of a three-span approach bridge on the left bank of the Main River. The prestressed concrete structure has spans of 25.175 m, 25.175 m, and 27.319 m. The Main River is freely spanned by a steel tied-arch bridge with a span of 160.2 m and a steel weight of 1,450 t. The arches on both sides are inclined 8° to the vertical in their plane and are joined at the apex to form a common central section with a length of 62 m. Above them, the two 3.1 m high, also inclined, and 7.1 m apart stiffening beams are supported by hangers made of 100 mm diameter round steel profiles, spaced 10.68 m apart. The arch depth, measured at the arch apex from the top edge of the stiffening beam to the center of the arch, is 22.2 m (Wikipedia)
