    BAS 4134
    Death Castle bridge

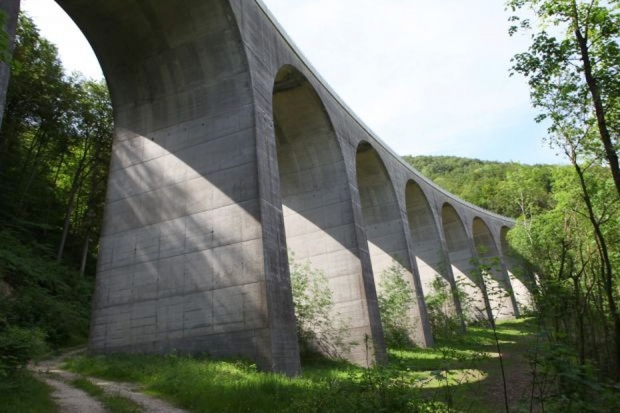

    Brückenbild

    © Michael Rahnefeld, Geislingen

    verboten / prohibitedNo other use permitted

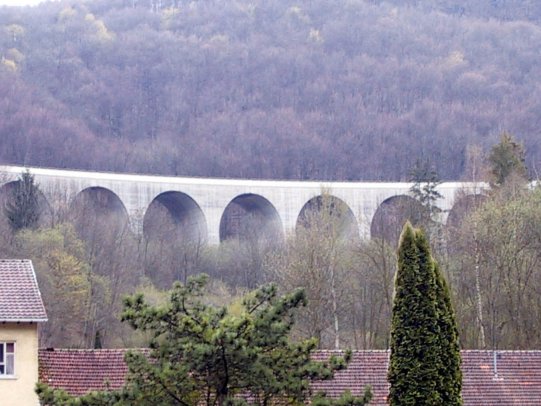

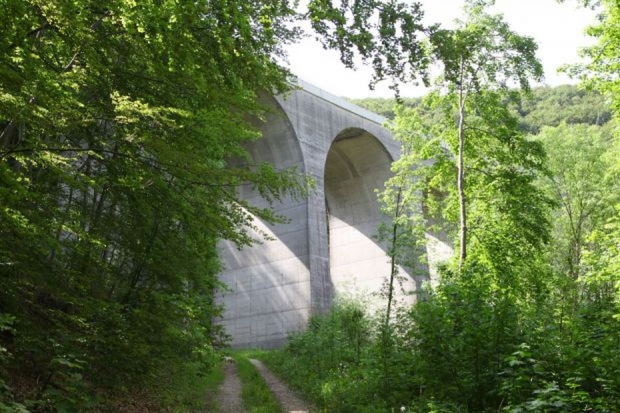

    Bild 1

    © Michael Rahnefeld, Geislingen

    verboten / prohibitedNo other use permitted

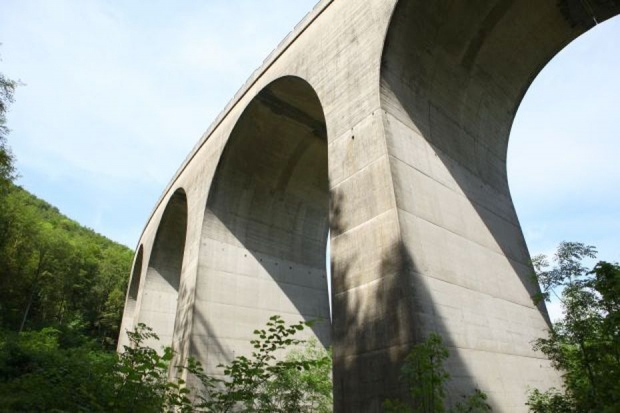

    Bild 2

    25.05.2014

    © www.brueckenweb.de / Frank Sellke

    gegen Entgeld / for a feeUse in accordance with the terms and conditions
    To Bridge Images
    Germany
    Baden-Württemberg
    Meadow rose
    Take the A8 motorway
    Arch, Arch under the roadway viaduct
    Steel-reinforced concrete
    1942
    18.00 m
    371.00 m
    0.00 m

    A map is loading

    Timeline

    Loading timeline...

    Tags

    Loading tags ...

    Editing is available for members (midgr >= 6).

    News

    Lade Nachrichten ... loading news ...

    Links

    Loading links ...

    Literature

    Loading literature ...

    Collectibles

    Loading collectibles ...

    Videos

    Loading videos ...

    Documents

    Loading documents ...

    0.00 m
    0.00 m
    0.00 m2
    in operation
    Arch and pillars 17 arch, 16 pillars<br>Pillar distance 18,45 m (c to c)<br>At the Ulm abutment's subsequent clamping beams concrete 43 m long<br>Height 25 m above ground (in axis)<br>Slope in the longitudinal axis of 4.91%<br>Radius of curves in the longitudinal axis of the building 250 m<br>Concrete and steel concrete mixtures including prestressed concrete beam structure and including the founding body built until 1942 45 000 m3<br>Built-in steel lot 1170 t<br>Work hours expended since 1955 (without insulation and pavement) 715-600 hrs.
