    BAS 4135
    Malakoff bridge
    Brückenbild

    27.04.2007

    © Inge Kanakaris-Wirtl (www.kanakari-photos.com)

    Nachfrage / demandUse only on request

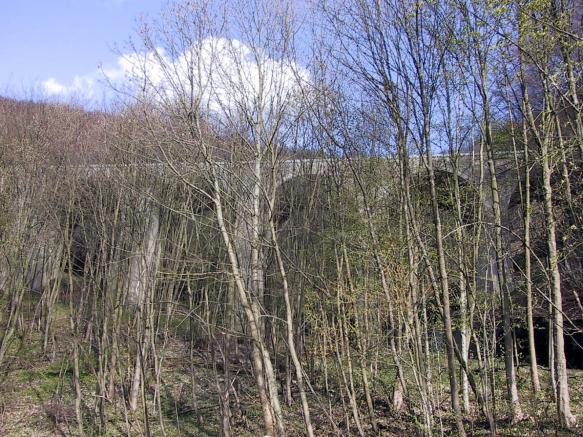

    Bild 1

    © Michael Rahnefeld

    verboten / prohibitedNo other use permitted
    Bild 2

    © Michael Rahnefeld

    verboten / prohibitedNo other use permitted
    To Bridge Images
    Germany
    Baden-Württemberg
    Meadow rose
    on the Drackensteiner slope
    Take the A8 motorway
    arch bridge, arch under the roadway
    Steel-reinforced concrete
    1955-1957
    16.20 m
    120.00 m
    0.00 m

    A map is loading

    Timeline

    Loading timeline...

    Tags

    Loading tags ...

    Editing is available for members (midgr >= 6).

    News

    Lade Nachrichten ... loading news ...

    Links

    Loading links ...

    Literature

    Loading literature ...

    Collectibles

    Loading collectibles ...

    Videos

    Loading videos ...

    Documents

    Loading documents ...

    27.00 m
    0.00 m
    0.00 m2
    in operation
    Arch and pillars 7 bow, 6 pillar<br>Pillar distance 16.20 m (c to c}<br>Height 27 m above ground (in axis)<br>Gradient axis 4.99%<br>Radius of curves in the longitudinal axis of the building 650 m<br>Concrete and steel concrete mass 6480 m3<br>Built-in steel lot 102 t<br>Work hours expended since 1955 (without insulation and pavement) 132 800 hrs.
