    Northern Ziegenwerderbrücke / oder arm (or old)

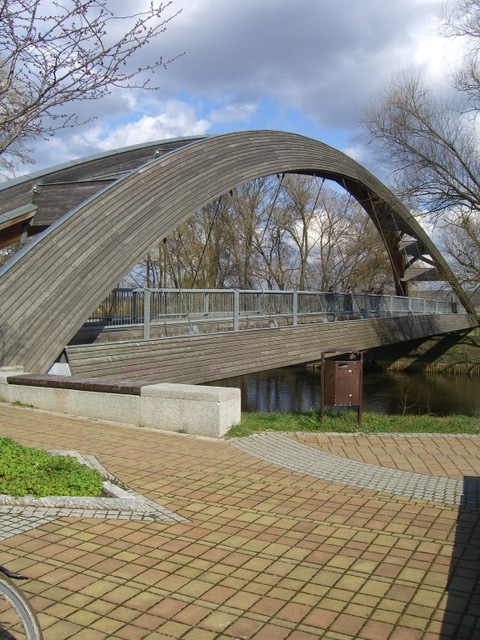

    Nördliche Ziegenwerder Brücke / Oderarm ( alte Oder ) Frankfurt Oder

    Nördliche Ziegenwerder Brücke / Oderarm ( alte Oder ) Frankfurt Oder

    27.3.08

    © Helmut Fischer

    Nachfrage / demandUse only on request

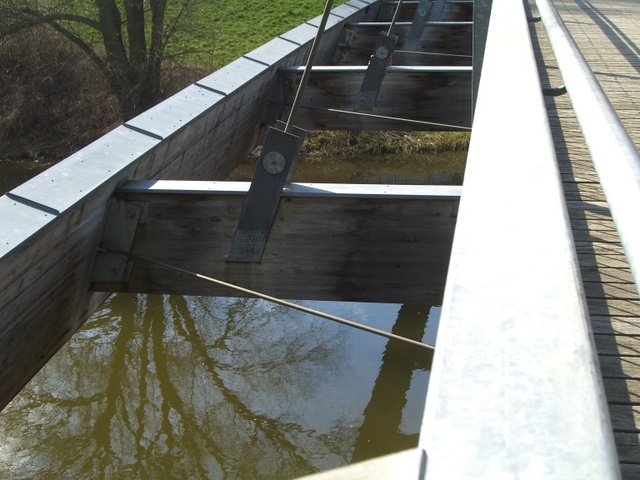

    Nördliche Ziegenwerder Brücke / Oderarm ( alte Oder ) Frankfurt Oder

    Nördliche Ziegenwerder Brücke / Oderarm ( alte Oder ) Frankfurt Oder

    27.3.08

    © Helmut Fischer

    Nachfrage / demandUse only on request
    Ziegenwerderbrücke

    Ziegenwerderbrücke

    18.03.2009

    © Johannes Bönisch

    Nachfrage / demandUse only on request
    To Bridge Images
    Germany
    Brandenburg
    Frankfurt / Oder
    OT of housed suburb
    Oder arm (or old)
    Pedestrian - and bicycle traffic to and from the island Ziegenwerder
    Rod segmental arch bridge over the Gehbahn with bulging sides
    glued timber and hinged girder bridge
    1996
    0.00 m
    68.00 m
    3.50 m

    A map is loading

    Timeline

    Loading timeline...

    Tags

    Loading tags ...

    Editing is available for members (midgr >= 6).

    News

    Lade Nachrichten ... loading news ...

    Links

    Loading links ...

    Literature

    Loading literature ...

    Collectibles

    Loading collectibles ...

    Videos

    Loading videos ...

    Documents

    Loading documents ...

    0.00 m
    0.00 m
    238.00 m2
    in operation
    <br>The city of Frankfurt / Oder intended a side arm of or close to the University in 1996 within the framework of its route network enlargement a bridge over. The reconstruction of a previous wooden truss bridge due to the life of the wood pile was abandoned, the city due to a strong static concept still opted for a bridge from the low-cost building material wood. The resulting arch bridge has a span of 68 m and a clear roadway width of 3.5 m. The structure itself consists of two each rejected three joint arches with tie and suspended road.
 BS - the two curved laminated wood - supporting arch have a radius of 62 m. You have a mutual distance of 8 m in the bearing points and are together in the middle of the bridge. There, the arch has a height of 10.70 m.<br><br>Construction: arch bridge with strap
