BAS 46312
SBS Bahnhofstrasse
21.09.2009
© Frank Sellke / brueckenweb.de
Use in accordance with the terms and conditions
17.06.2009
© Frank Sellke / brueckenweb.de
Use in accordance with the terms and conditions
21.09.2009
© Frank Sellke / brueckenweb.de
Use in accordance with the terms and conditionsGermany
North Rhine-Westphalia
Heiligenhaus
Street
Bike path (former railway Kettwig-Heiligenhaus-Velbert)
Girder bridge (old railway wagon as a bridge to use)
Steel
2009
14.86 m
19.90 m
2.53 m
0.00 m
0.00 m
50.80 m2
in operation

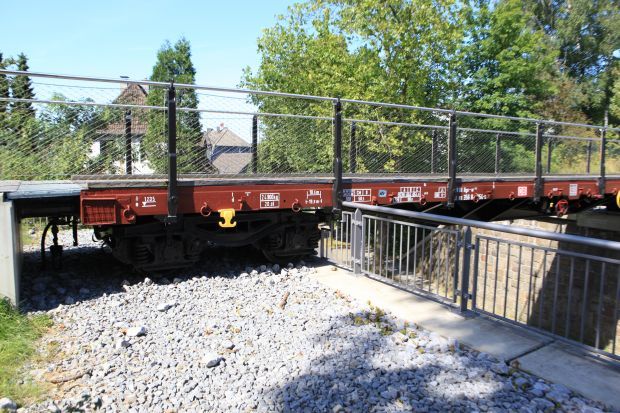

Wingspan: Rotary pin distance: 14.86 m<br>Overall length: Length over buffers: 19.9 m<br>Width: between the handrails 2.53 m<br>Bridge surface without grid grates over the buffers: 50.8 m2<br>Height above ground: clear passage height: 4,80 m<br>Pillar height: OK track rust OK sidewalk: 4.39 m<br>a Flatcar of the RGS w 672 with rotating stanchions type was used as a bridge. The rotation changes now serve as railing posts. You wear a stainless steel handrail made of round tube. As fall protection stainless steel nets stretched between the posts.
