    BAS 4894
    Tube bar
    Brückenbild

    29.10.2005

    © Manfred Jakoby (zur Verfügung gestellt von Sylvian Raymond www.atawalk.net )

    verboten / prohibitedNo other use permitted

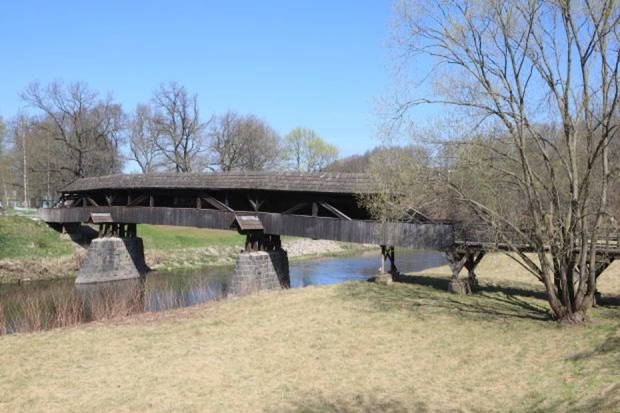

    Bild 1

    19.04.2015

    © www.brueckenweb.de / Frank Sellke

    gegen Entgeld / for a feeUse in accordance with the terms and conditions

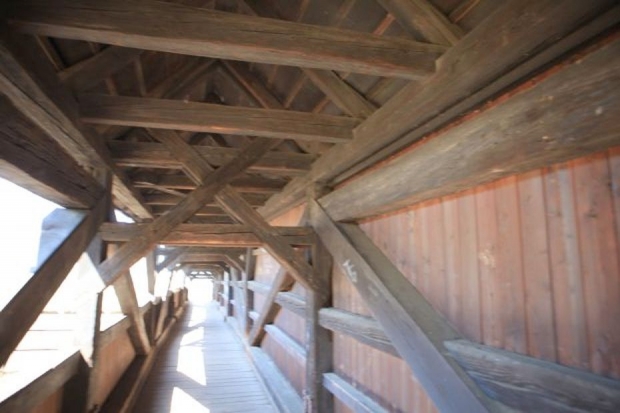

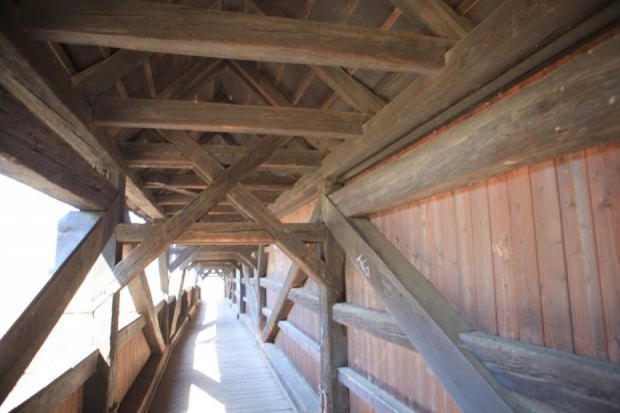

    Bild 2

    19.04.2015

    © www.brueckenweb.de / Frank Sellke

    gegen Entgeld / for a feeUse in accordance with the terms and conditions
    To Bridge Images
    Germany
    Saxony
    Zwickau
    Zwickau
    Water pipe
    Covered bridge, covered wooden bridge, truss bridge (King post, trusses and Queen post)
    Wood
    1535, 1790
    18.60 m
    62.00 m
    0.00 m

    A map is loading

    Timeline

    Loading timeline...

    Tags

    Loading tags ...

    Editing is available for members (midgr >= 6).

    News

    Lade Nachrichten ... loading news ...

    Links

    Loading links ...

    Literature

    Loading literature ...

    Collectibles

    Loading collectibles ...

    Videos

    Loading videos ...

    Documents

    Loading documents ...

    0.00 m
    0.00 m
    0.00 m2
    in operation

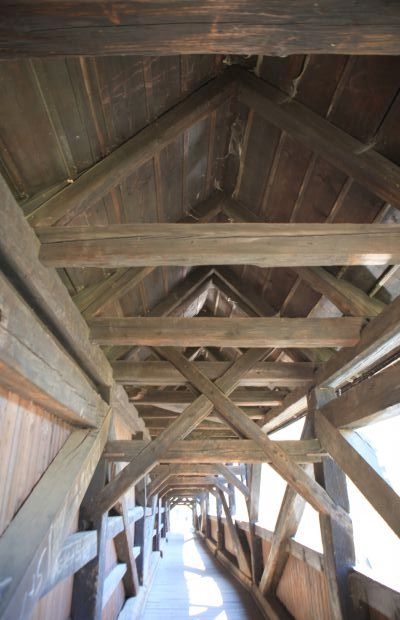

    Through the originally unroofed tube bridge passed drinking water in wooden pipes from the Reinsdorfer and Pöhla reason in the city since June 1535. Where it flowed into the homes of wealthy citizens, or it could be removed from the public Röhr boxes. Around 1840 there were two on the market one on the monastery square on the lower yard, the official Lane, in close to the gate of woman - as well as eleven "pumps" in six such Röhr boxes - Zwickau.<br>The bridge was destroyed by ice and flood frequently. It received its present indoor form in 1790 and is the only surviving Baudenkaml of its kind in the area. The late medieval bridge has a wood shingle roof.<br>A tube (pierced tree trunk) is angebarcht as a witness for the technique the Röhr aqueduct a few years ago at the tube bar was. To the North, the bridge is closed, to the South, but it reveals.<br>Spans: 13.3 m + 15.4 m + 18.6 m + 13.3 m
