BAS 5179
Grünwald bridge

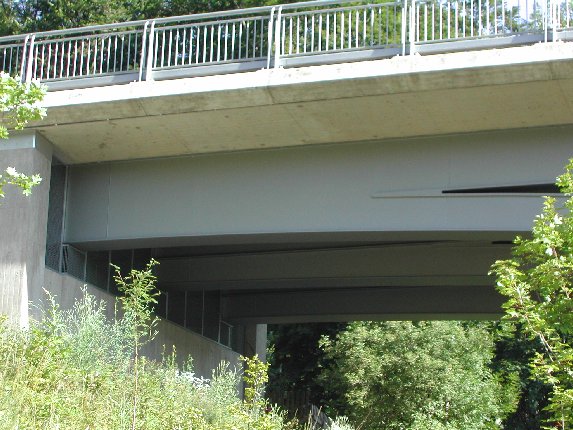

02.07.2003
© Frank Sellke / brueckenweb.de
Use in accordance with the terms and conditions

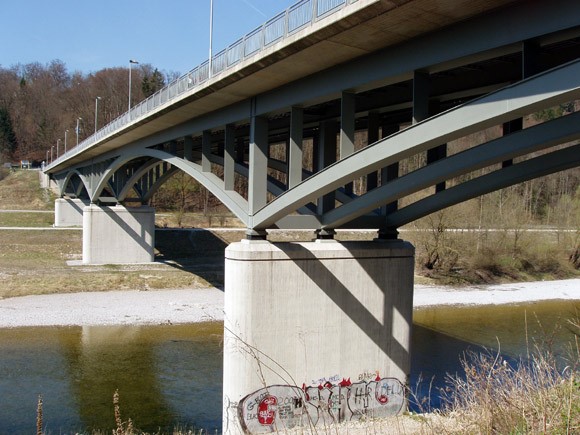

April 2007
© Pavel Rypar
Use only on request

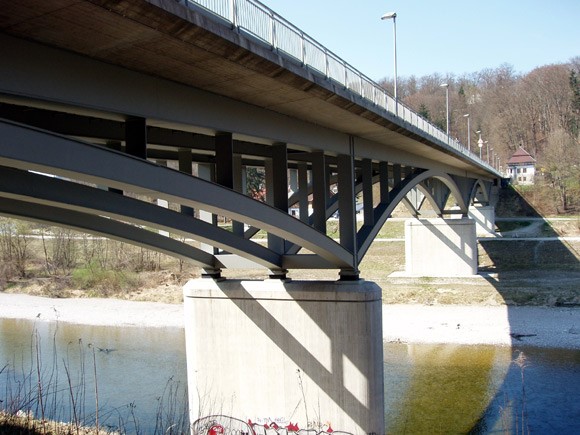

April 2007
© Pavel Rypar
Use only on requestGermany
Bavaria
Munich
ISAR
Street
arch bridge, arch under the roadway
Composite steel
2001
70.00 m
214.00 m
12.00 m
0.00 m
0.00 m
0.00 m2
in operation
Spans of 37.00-70.00-70.00-37.00.-replaced old steel arch bridge concrete from 1904 (BAS 3427), which was torn down<br> <br>Cross section: [m] 0, 4 + 3 + 6, 5 + 3 + 0, 4 = 13.3 (cornice + go and cycle track + track + go - and cycleway + cornice)<br>Construction height: = 1.92 hk [m] in the<br>ARC vertex; HK = 7.17 on the pillars<br>ARC rods: [cm] rectangular - hollow cross-section 65 x 75<br>Arch form: square parabola<br>Arch stitch: [m] f = 5.16<br>Fahrbahnlängsträger: [cm] rectangular - hollow cross-section 74 x 97<br>Steel grade St 52-3 (old name); Concrete quality B35 (old name)<br>Completion of 15.06.2001<br>Cost: DM 23 million<br>Weight steel construction: 927 t; Weight superstructure 5027 t<br>
