BAS 6013

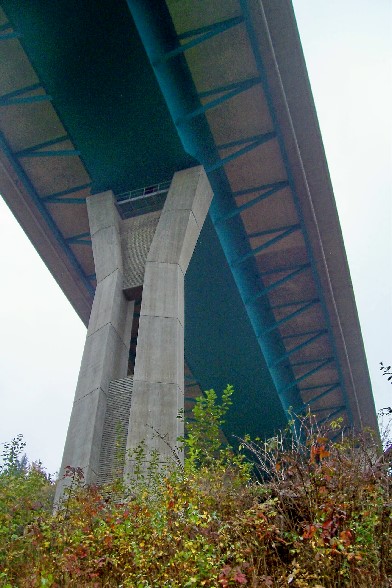

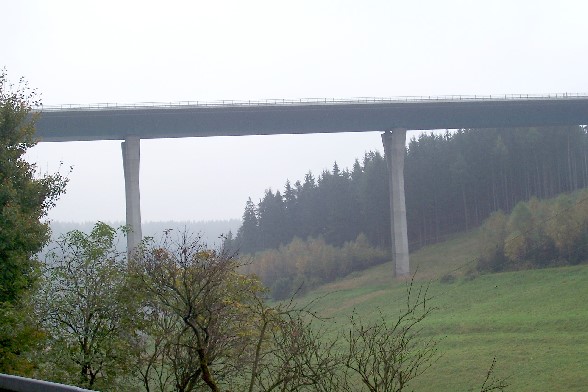

Dambach viaduct

02.10.2007
© Heidi Zengerling
Use of Heidi Zengerling

02.10.2007
© Heidi Zengerling
Use of Heidi Zengerling

02.10.2007
© Heidi Zengerling
Use of Heidi Zengerling
Germany
Thuringia, Germany
Hirschbach
Dambach
Motorway A73
Girder bridge
Composite steel
2003-2005
85.00 m
370.00 m
28.50 m
65.00 m
0.00 m
0.00 m2
in operation
Construction company: Walter Bau<br><br>The building is located in southern Thuringia between the Autobahn interchanges Suhl-Friedberg and Schleusingenn. It spans the Valley of Dambach with road of l2634 by Deer Creek West of Hirschbachh at an altitude of up to 65 m with six fields for Altendambach as well as a 15 kV and a 110 kV transmission line. The bridge is just the plan and has a longitudinal gradient with 2.34% direction Schleusingen in the drilldown. In the transverse direction, both direction roadways have a gradient of 2.5% to the outside. The transfer between the years of 2003 and 2005 at a cost of about 10 million euros, was built.<br><br>Construction height: 4.5 m max.
