    BAS 6212

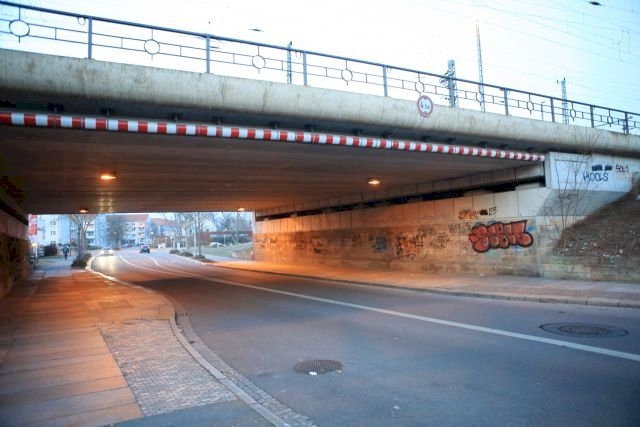

    Railway bridge Uhlandstreet
    Ansicht

    Ansicht

    © Dr. Tröger

    verboten / prohibitedNo other use permitted

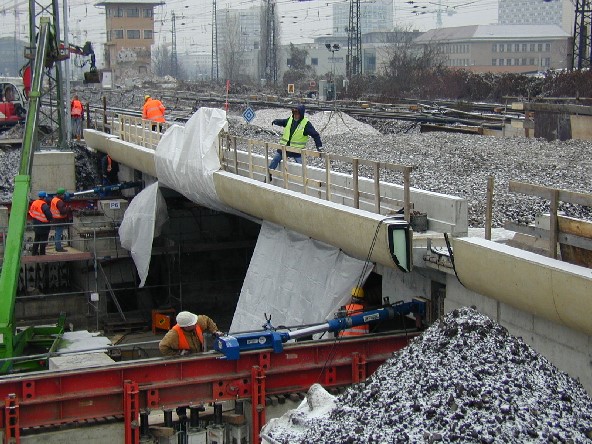

    alte und neue brücke

    alte und neue brücke

    © Dr. Tröger

    verboten / prohibitedNo other use permitted
    Bild 2

    01.03.2018

    © www.brueckenweb.de / Frank Sellke

    gegen Entgeld / for a feeUse in accordance with the terms and conditions
    To Bridge Images
    Germany
    Saxony
    Dresden
    km 61,844 of the DB line Dresden-Pirna
    Street
    Railway
    Girder bridge
    Clamping composite beams according to the SAM-Spannverbun system
    2001-2003
    19.28 m
    0.00 m
    0.00 m

    A map is loading

    Timeline

    Loading timeline...

    Tags

    Loading tags ...

    Editing is available for members (midgr >= 6).

    News

    Lade Nachrichten ... loading news ...

    Links

    Loading links ...

    Literature

    Loading literature ...

    Collectibles

    Loading collectibles ...

    Videos

    Loading videos ...

    Documents

    Loading documents ...

    0.00 m
    0.00 m
    0.00 m2
    in operation
    Information provided by Dr. Tan:<br>Span of the two fanned out misplaced buildings BW101 and BW102 is 19.28 m, mantel width 10, 69 m up 12.45m(BW101) or 16.02 m bis16.50m(BW102).An extreme weight-loss of 27.2 exists with a construction height of 0.71 m given to realize was a deformation limit of 1/550.<br>-The adjacent concrete feet make the formwork for the concrete.<br>-The lateral movement of the BW101 (approx. 700to) was carried out with complete track construction<br>Measurement results have confirmed in load with 2 class 232 locomotives the very good carrying behaviour of selected construction deformation and vibration behavior.
    Deutsche Bahn
