BAS 6689
Berlin gate Dam Bridge
19.05.2005
© Frank Sellke / brueckenweb.de
Use in accordance with the terms and conditions

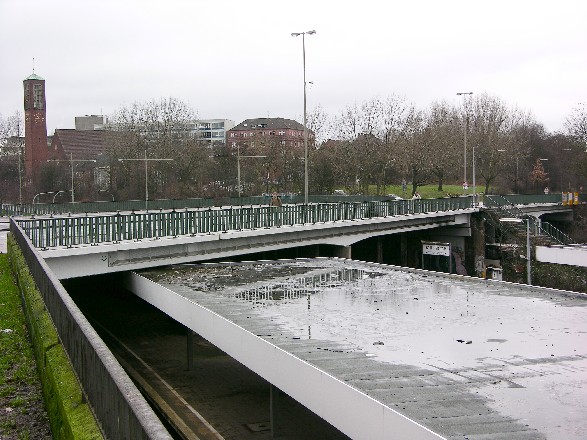

28.01.2007
© Frank Sellke / brueckenweb.de
Use in accordance with the terms and conditions

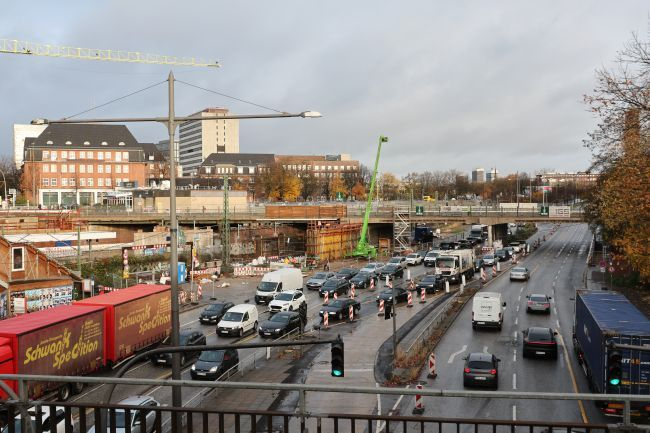

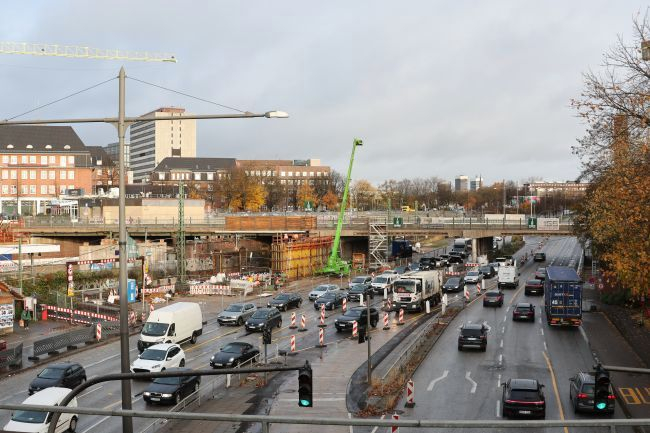

18.11.2024
© www.brueckenweb.de / Frank Sellke
Use in accordance with the terms and conditionsGermany
Hamburg
Hamburg
Subway, street Bürgerweide
Street Berliner Tor dam
Girder bridge
Concrete
1902, Erweiterungsbauten 1960
0.00 m
46.00 m
66.00 m
0.00 m
0.00 m
2779.00 m2
in operation
Structure 1902: 4-span girder grid with load-distributing slab; length 40 m, width 23 m, bridge area: 976 m²
Structure 1960: 2-web prestressed concrete T-beam; length: 46 m, width 4 m; bridge area 223 m²
Structure 1960: 1-web reinforced concrete T-beam; Length 35 m, width 5 m, bridge area 202 m² Structure 1960: Prestressed concrete continuous slab (cell box), length 40 m, width 34 m, bridge area 1378 m²
SU Amt V - Land / Bezirk Mitte
32 (ASB: 2426163)
