    BAS 7371
    Schnettker Bridge

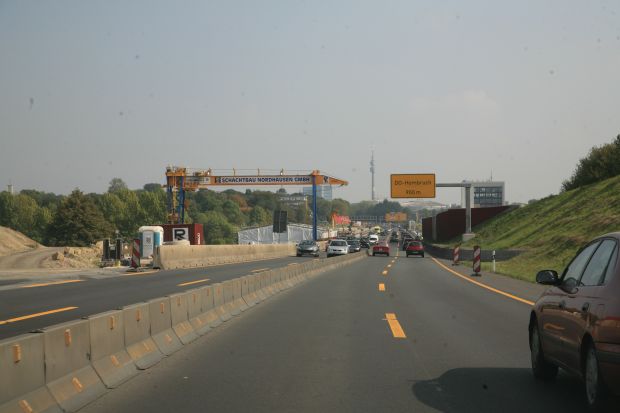

    Brückenbild

    10.12.2011

    © Frank Sellke / brueckenweb.de

    gegen Entgeld / for a feeUse in accordance with the terms and conditions

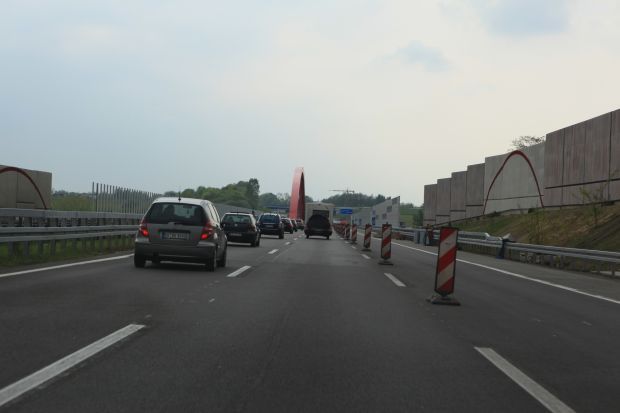

    Bild 1

    01.05.2012

    © Frank Sellke / brueckenweb.de

    gegen Entgeld / for a feeUse in accordance with the terms and conditions

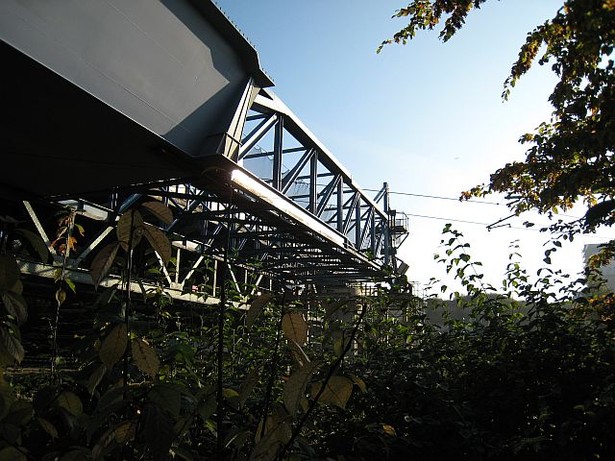

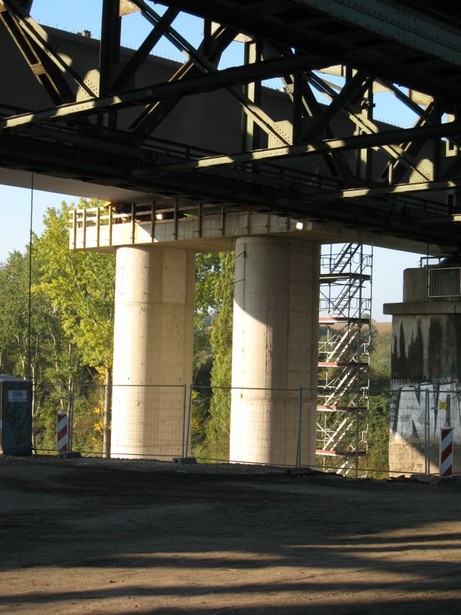

    Vorschubschnabel der südlichen Brücke

    Vorschubschnabel der südlichen Brücke

    07.10.2007

    © Thomas Bauckmeier

    Nachfrage / demandUse only on request
    To Bridge Images
    Germany
    North Rhine-Westphalia
    Dortmund
    Emscher, railway
    B1 motorway
    Arch bridge, arch over the roadway
    Steel
    ab 2005 bis Herbst 2011
    310.00 m
    328.00 m
    41.60 m

    A map is loading

    Timeline

    Loading timeline...

    Tags

    Loading tags ...

    Editing is available for members (midgr >= 6).

    News

    Lade Nachrichten ... loading news ...

    Links

    Loading links ...

    Literature

    Loading literature ...

    Collectibles

    Loading collectibles ...

    Videos

    Loading videos ...

    Documents

    Loading documents ...

    0.00 m
    0.00 m
    13228.00 m2
    in operation
    The new bridge is being built to replace the Schnettker Bridge (BAS 4693).

    Construction time: 46 months
    Total length: northern superstructure 308 m; southern superstructure 328 m
    Bridge usable width (between the railings): 41.60 m
    Arch rise above the roadway: 15.98 m
    Reinforced concrete volume: 11,300 m³
    Structural steel volume: 4,300 t

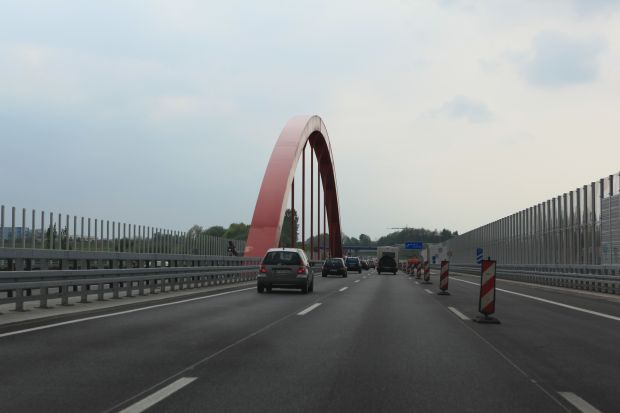

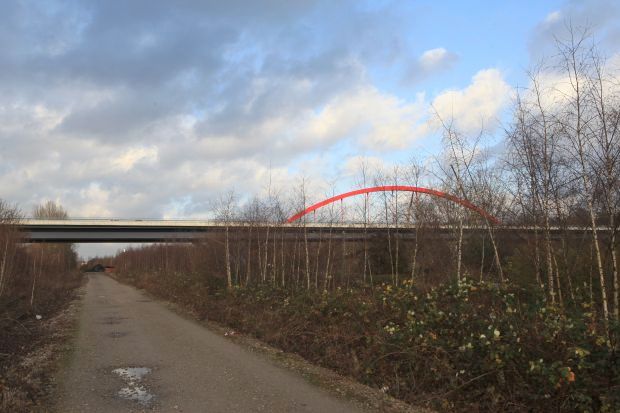

    The new Schnettker Bridge is designed as a two-span, continuous deck bridge spanning four sections, constructed using composite methods. In the main span, a central girder arch bridge is formed by the arrangement of a steel arch in the bridge axis. The main girders are supported at the arch bases by asymmetrical V-shaped steel columns. The chosen design takes into account the existing constraints (railway, Emscher River, stormwater retention basin).
