    BAS 7542
    Mauchachbruecke
    Brückenbild

    17.10.2005

    © Eva-Maria Eckert

    Nachfrage / demandUse only on request

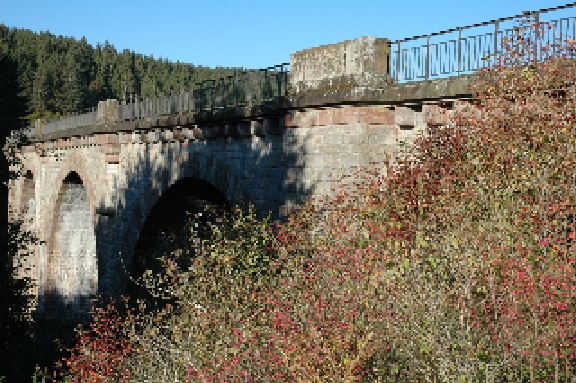

    Bild 1

    17.10.2005

    © Eva-Maria Eckert

    Nachfrage / demandUse only on request

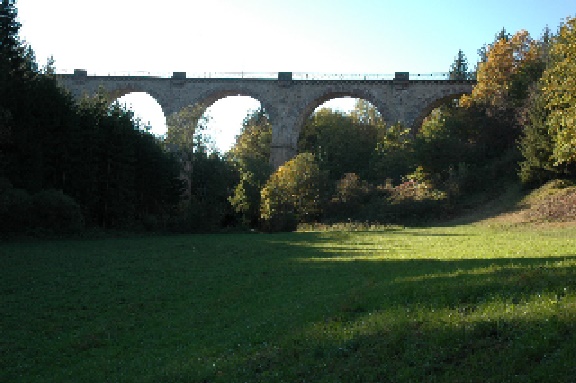

    Bild 2

    17.10.2005

    © Eva-Maria Eckert

    Nachfrage / demandUse only on request
    To Bridge Images
    Germany
    Baden-Württemberg
    Löffingen Unadingen
    Baden bei Wien, Hochschwarzwald Freiburg of district of
    Mauchach
    Railway
    Arch, Arch under the roadway viaduct
    2.6.1899 - 30.6.1900 (Baupause im Winter)
    18.00 m
    150.00 m
    0.00 m

    A map is loading

    Timeline

    Loading timeline...

    Tags

    Loading tags ...

    Editing is available for members (midgr >= 6).

    News

    Lade Nachrichten ... loading news ...

    Links

    Loading links ...

    Literature

    Loading literature ...

    Collectibles

    Loading collectibles ...

    Videos

    Loading videos ...

    Documents

    Loading documents ...

    30.00 m
    0.00 m
    0.00 m2
    in operation
    Aubrücke in the vernacular<br><br>RADIUS 550m slope 1%, Arch openings 7 with 18 m 1 with 7 m pillar suit front side 1:20 inside 1:30, masonry 6677 m 3, visible surfaces of red sandstone from the region of Bräunlingen and Hamlet; Square of Vosges sandstone, filling limestones of these trenches, construction cost 321.266 marks<br>Source: Chronicle of Unadingen, town of Löffingen
