BAS 81375

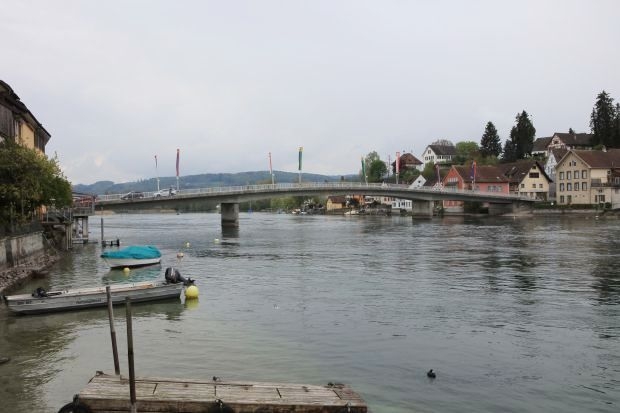

Rhine bridge in Stein am Rhein

24.04.2016
© www.brueckenweb.de / Frank Sellke

24.04.2016
© www.brueckenweb.de / Frank Sellke

24.04.2016
© www.brueckenweb.de / Frank Sellke
Switzerland
Schaffhausen
Stein am Rhein
Rhine
Road
Girder bridge
Concrete
1972 bis 1974
0.00 m
111.00 m
11.00 m
0.00 m
0.00 m
0.00 m2
in operation
Wikipedia: The structure, built in 1974, is a 111-meter-long prestressed concrete bridge. With three spans, it features a continuous girder with variable depth as its longitudinal structural system. In the transverse direction, the 11-meter-wide superstructure consists of a two-cell box girder with walkway cantilevers on both sides. The two river piers are designed as narrow shear walls and, like the abutments, are founded on piles.
``
