BAS 84300
Schiffbeker Weg
Keine weiteren Bilder verfügbar
Germany
Hamburg
Hamburg
Street
A24 motorway
Slab girder bridge, girder bridge
prestressed concrete
1975
0.00 m
38.75 m
32.00 m
0.00 m
0.00 m
1256.00 m2
in operation

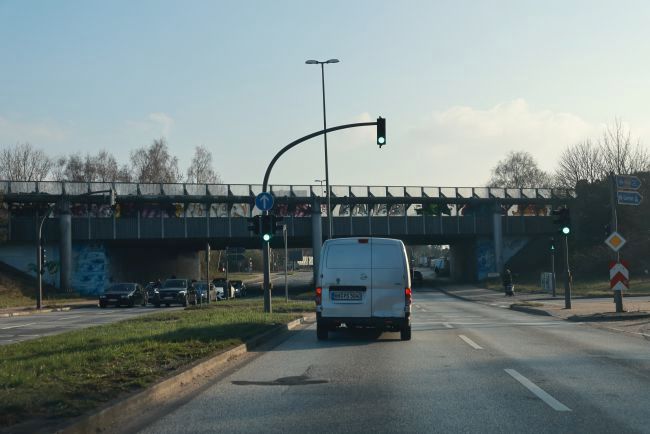

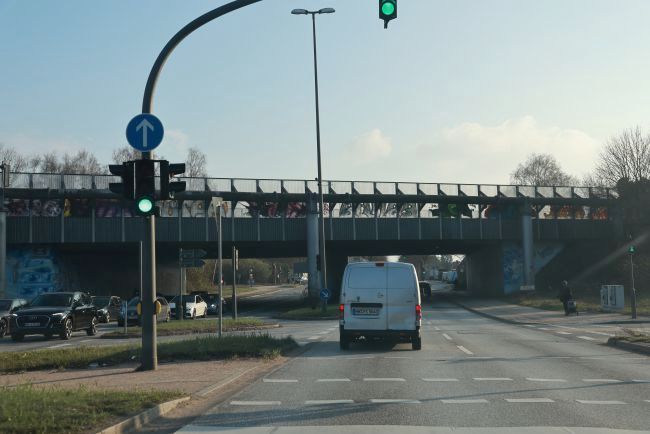

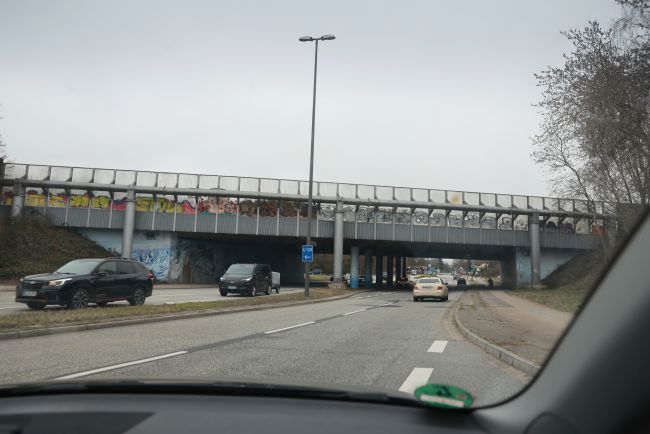

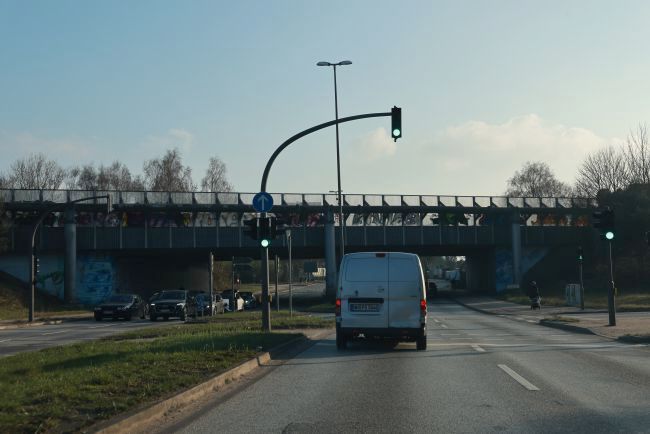

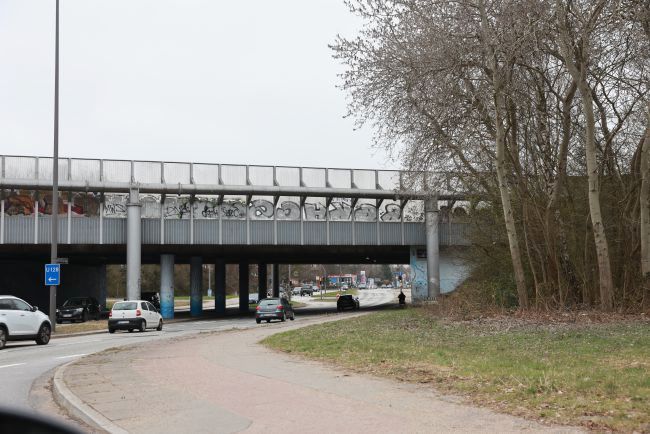

The bridge consists of two substructures:
1. Built in 1975: Length 38 m, width 14 m, area 545 m², continuous girder spanning 2 spans
2. Built in 1975: Length 38 m, width 18 m, area 711 m², span > continuous girder spanning 2 spans
In 2004, a structure for the noise barrier was built in front of the bridge
BSU Amt V - Bund LSBG-B3 / Bezirk Mitte
494 (ASB: 2426071)
