    BAS 85099
    Junction
    Brückenbild

    08.04.2017

    © www.brueckenweb.de / Frank Sellke

    gegen Entgeld / for a feeUse in accordance with the terms and conditions

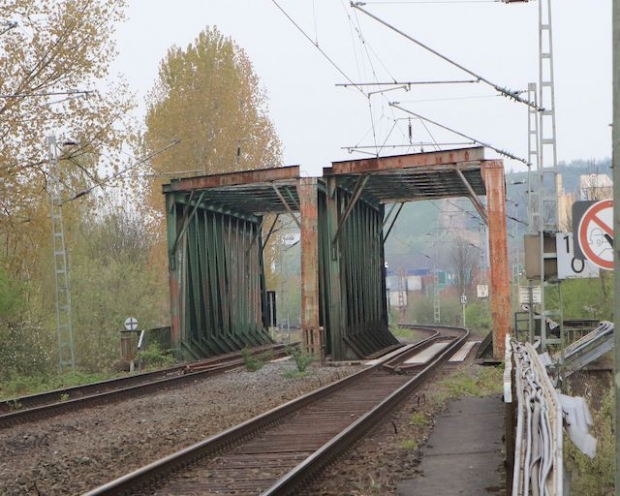

    Bild 1

    08.04.2017

    © www.brueckenweb.de / Frank Sellke

    gegen Entgeld / for a feeUse in accordance with the terms and conditions

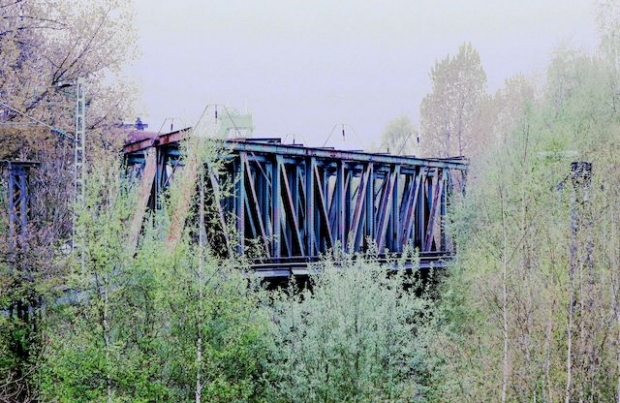

    Bild 2

    08.04.2017

    © www.brueckenweb.de / Frank Sellke

    gegen Entgeld / for a feeUse in accordance with the terms and conditions
    To Bridge Images
    Germany
    North Rhine-Westphalia
    Dortmund
    Railway
    Railway
    Truss bridge
    Steel
    1909
    46.00 m
    46.00 m
    13.00 m
    0.00 m
    0.00 m
    676.00 m2
    in operation
    Steel bridge, parallel truss structure, lower roadway (over DBAG tracks) Gravity abutment walls made of natural stone masonry and reinforced concrete Bearing girders, bearing bases and chamber walls span between 42 m and 46 m, total width of the two superstructures: 13 m Between April 15, 2024 and June 30, 2024, the bridge superstructure is to be demolished and replaced by an embankment. The abutments will remain in the embankment.
    DB Netz AG
