BAS 86238
Lohring Bridge
01.06.2023
© www.brueckenweb.de / Frank Sellke
Use in accordance with the terms and conditions
25.05.2017
© www.brueckenweb.de / Frank Sellke
Use in accordance with the terms and conditions
25.05.2017
© www.brueckenweb.de / Frank Sellke
Use in accordance with the terms and conditionsGermany
North Rhine-Westphalia
Bochum
railroad
Street
Beam bridge
concrete
1909,1929,1974
0.00 m
105.00 m
11.20 m
0.00 m
0.00 m
0.00 m2
in operation

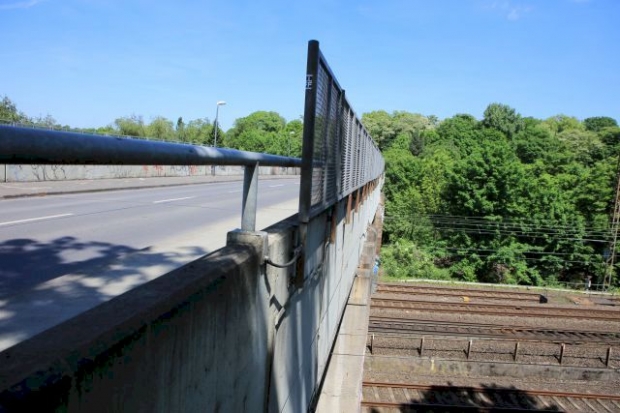

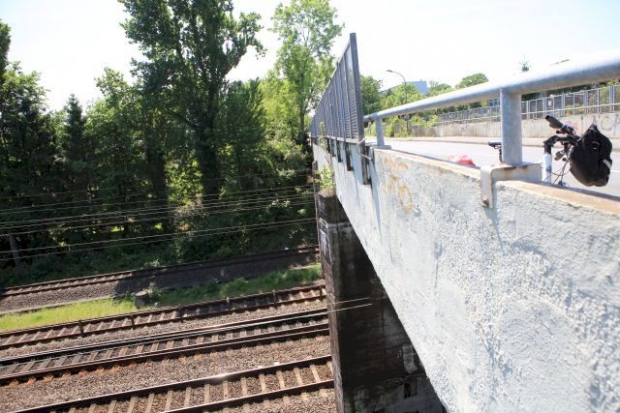

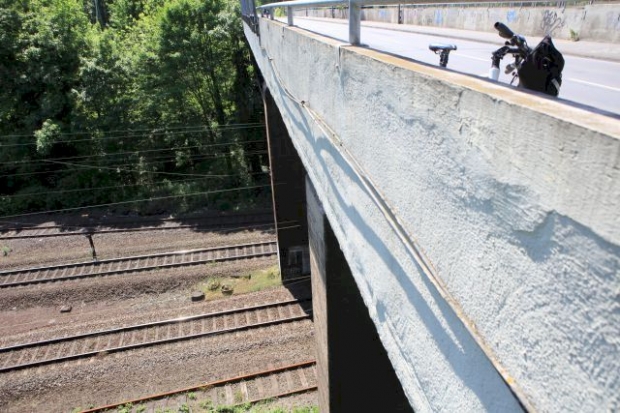

-Bridge length approx. 105 m -Clear width approx. 11.2 m The superstructure consists of seven spans: 5 spans built in 1909 (concrete slab girders), 1 span built in 1929 (WIB), and 1 span built in 1974 (concrete slab). The substructures are made of cast-in-place concrete; the south abutment is constructed as a bored pile wall.
Stadt Bochum
BW Nr. 145
