    BAS 8791
    A4 dedicatory Valley bridge
    Brückenbild

    07.05.2006

    © Johannes Bönisch

    Nachfrage / demandUse only on request
    A4 Weihetalbrücke

    A4 Weihetalbrücke

    Aug.2012

    © Margot Martin

    gegen Entgeld / for a feeUse in accordance with the terms and conditions

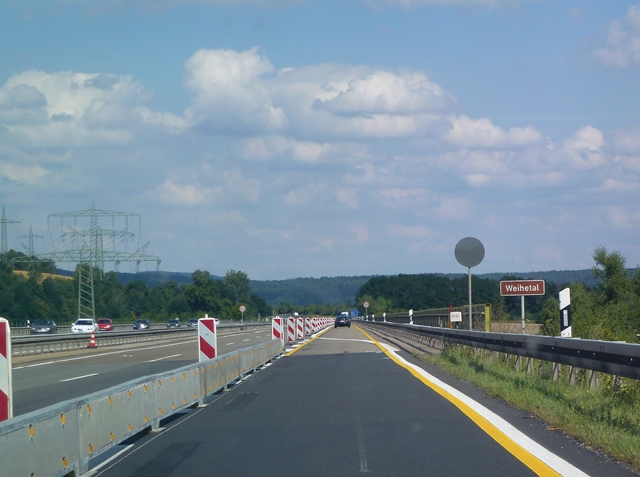

    A4 Autobahnbrücke /Weihetal

    A4 Autobahnbrücke /Weihetal

    September 2012

    © Margot Martin

    gegen Entgeld / for a feeUse in accordance with the terms and conditions
    To Bridge Images
    Germany
    Thuringia, Germany
    Gerstungen Wartburgkreis
    in the Wartburgkreis district, West of the village, north-northeast of Wildeck, West of Eisenach
    L 1022 Richelsdorfer road and road on the mountain, consecration
    Autobahn BAB Görlitz - A4 Bad Hersfeld
    Girder bridge
    Prestressed concrete
    1994
    0.00 m
    584.00 m
    0.00 m

    A map is loading

    Timeline

    Loading timeline...

    Tags

    Loading tags ...

    Editing is available for members (midgr >= 6).

    News

    Lade Nachrichten ... loading news ...

    Links

    Loading links ...

    Literature

    Loading literature ...

    Collectibles

    Loading collectibles ...

    Videos

    Loading videos ...

    Documents

    Loading documents ...

    0.00 m
    0.00 m
    0.00 m2
    in operation

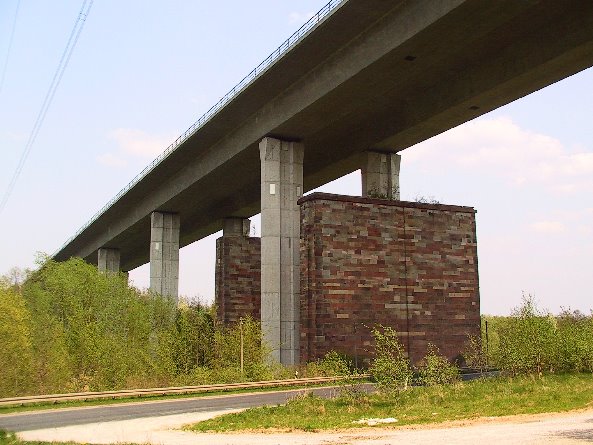

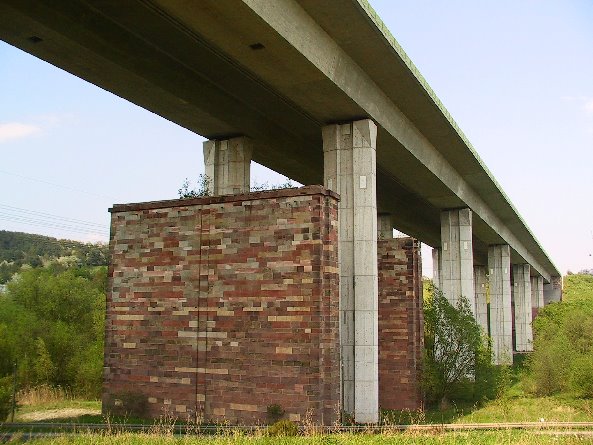

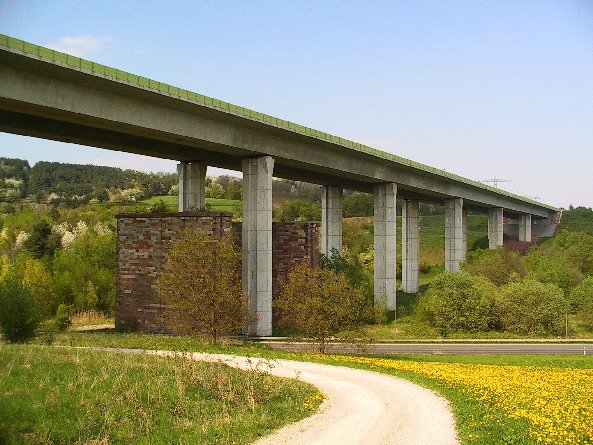

    1937 in terms of Wildeck Bad Hersfeld - Eisenach, was started with the construction of the Reichsautobahn A 23, today's Federal motorway A 4. The work continued until the second world war. Set, they were constructed in 1943, as seven pillars of the Richelsdorfer bridge and the arch were powered. Four lanes had should - take the Richelsdorfer Valley bridge pillars. She assembled was never; small trees grow on the platforms. For more than 40 years, the unfinished bridge on the Thuringian tip was also a symbol of the Division of Germany. Five of the seven pillars were blown up after the construction of the bridge of the A4.<br>The new highway bridge was inaugurated in 1994. It is a pre-stressed concrete bridge of 584 metres in length, which is based on 8 pillars.
 Height above ground: 37.00 m.
 The renaming of the Richelsdorfer Valley bridge in Weihe valley bridge followed the public name on the edge of the highway.
